Valve

3 series of valves;

High conductance.  Broad installed base.  P/N: AVP-(size)

Long LStandard – Hiife (LL)– Cost effective with slightly less conductance.  P/N: AVP-(size)-LL

Low Particle (LP) – Detail at “Custom Products” session.  P/N:  AVP-(size)-LP

Manual, pneumatic & electric

From 0.7” to 25” in any flange style

Highest conductance on the market

Available in stainless or aluminum valve body

Customization is welcome

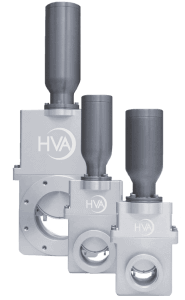

2 series of valve:  Standard (2-axis) and SAG(Single Axis Gate)

Manual or pneumatic.

From 1.5” to 12” in any flange style

Mounts in any configuration

Standard body is vacuum brazed to give clean & long-lasting performance

Available in stainless or aluminum body

Manual or pneumatic

From 0.7” to 4”

Ideal for harsh and corrosive environment

PTFE seal’s wiping action reduces particulate buildup

Available in 2,3,& 4 way

304 Flange and SS316 body

Customization is welcome

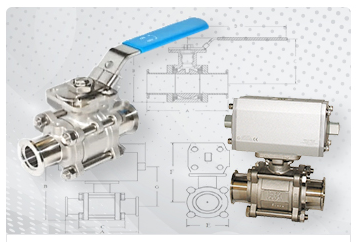

Manual or pneumatic

From 1” to 4”

Quick action

¼ turn to go from fully open to fully close

Shut-off or throttling

Available in stainless only

From 4” to 35”

Low profile for high conductance

Linear conductance control over a wide range of operation

Highly repeatable

Available in stainless or aluminum

Available in RS232 or 1-10V DC

Build-in diagnostics

Manual override for set up and maintenance
